Description
Basic specifications
Accuracy guaranteed: 1 year

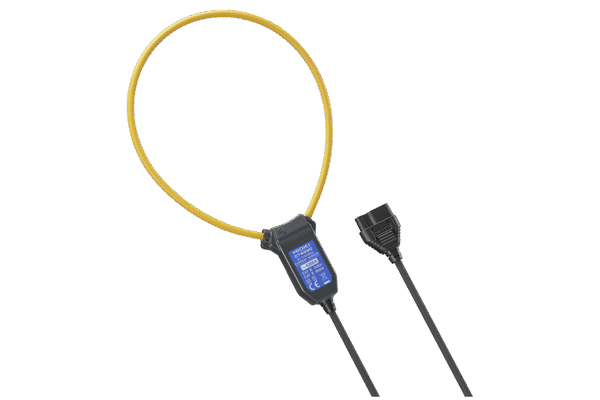

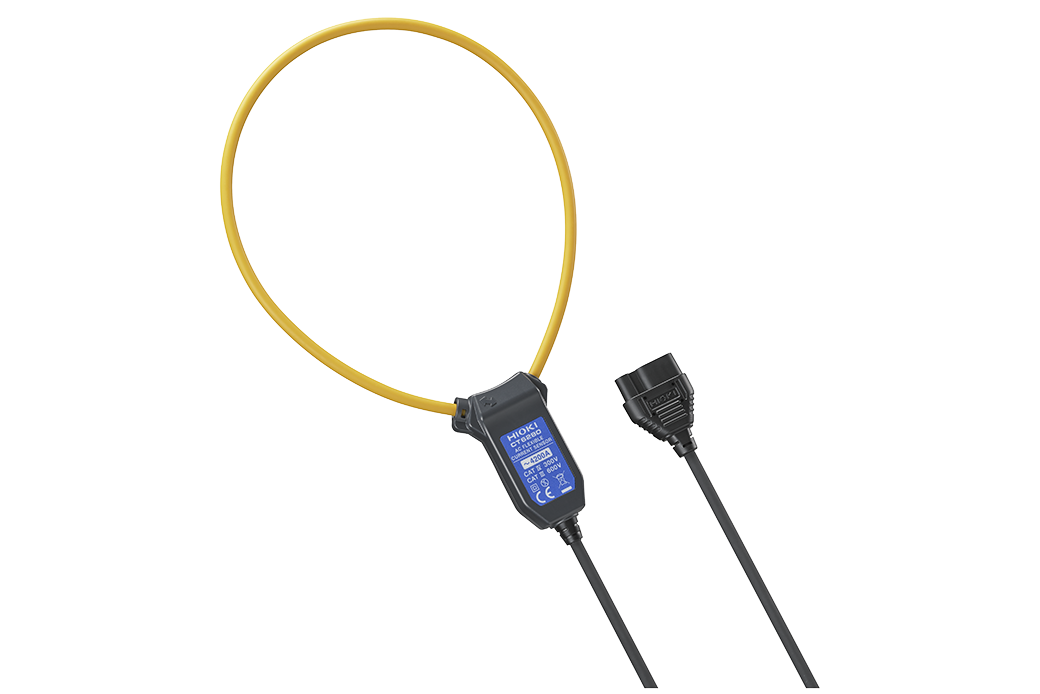

Note: CT6280 is a flexible current sensor for measuring large currents. It is not suitable for measuring minute current such as leakage current.
Maximum input current 4200 A AC, continuous (50 Hz to 60 Hz)
Core jaw dia. φ 130 mm (5.12 in) (Cross-section diameter of sensor cable: φ 5 mm (0.20 in); Sensor-tip cap diameter: φ 7 mm (0.28 in))
Dimensions and mass 42 mm (1.65 in) W × 65 mm (2.56 in) H × 18 mm (0.71 in) D (excluding the flexible loop and output cable), 71 g (2.5 oz)
Cable length 800 mm (31.5 in)
Included accessories Carrying Case C0205 ×1
