Description

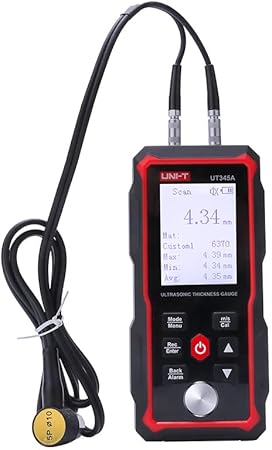

UT345A Ultrasonic Thickness Gauge
Specifications
Display 2.4″ LCD
Measurement range 1.00~300.00mm
Sound velocity range (1000～9999) m/s
Unit mm/in
Accuracy H<10mm, ±0.1mm; H≥10mm, ±(1%H+0.1)mm
Lower limit of pipe measurement Φ20×3mm (steel)
Data storage 300 groups, including material, sound velocity, unit, measured value, MAX, MIN and AVG of each group
Main functions Single measurement, continuous measurement, alarm, sound velocity measurement, auto calibration
Charging specification DC 5V 1A, Type-C interface
Operating time (full battery) About 16h
Operating temperature and humidity 0℃~40℃ 10%RH~80%RH
Storage temperature and humidity -10℃~50℃ 10%RH~70%RH
General Characteristics
Battery Built-in lithium battery (3.7V 2000mAh)
Product color Red and grey
