Description
Specification:
Model

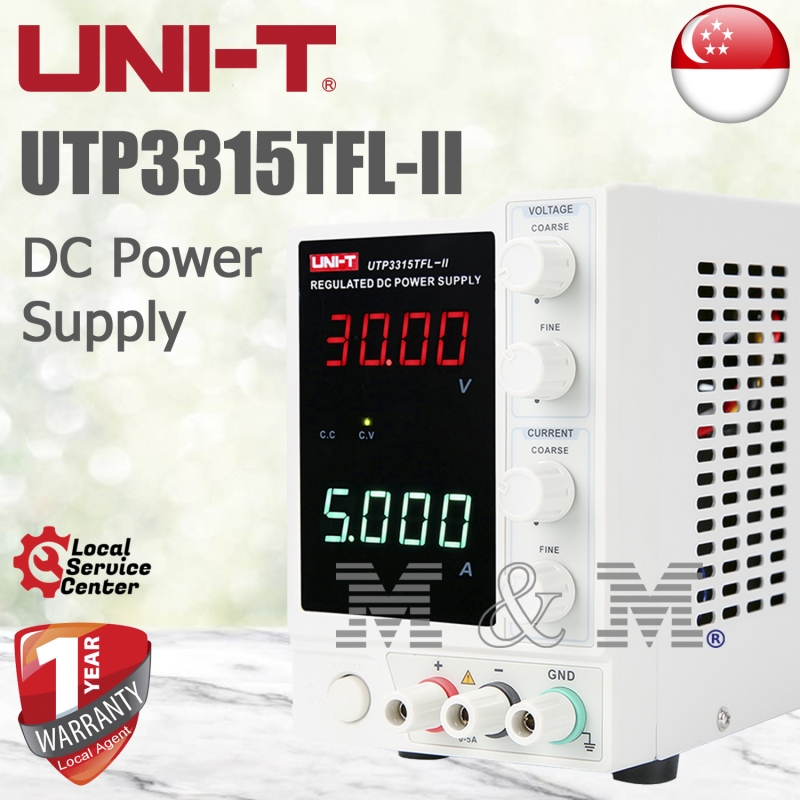

UTP3313TFL-II
UTP3315TFL-II
Output voltage
0~30V
0~30V
Output current
0~3A
0~5A
Output power
90W
150W
Load regulation
CV≤0.01%+3mV, CC≤0.1%+5mA
CV≤0.01%+5mV, CC≤0.1%+10mA
Accuracy (25℃±5℃)
Voltage
＜0.5%+20mV
＜0.5%+20mV
Current
＜0.5%+5mA
＜0.5%+10mA
Ripple and noise
≤1mVrms
≤2mVrms
Output regulation resolution
CV: 10mV (typical), CC: 1mA (typical)
Reliability
MTBF(e): ≥2000hrs
Display mode
LED voltage and current dual display
Feature
Auto conversion of constant voltage and current with current limit protection
General Characteristics
Power
Input voltage: 110V/220V±5% AC; frequency: 50Hz/60Hz
Product color
White and grey
Product net weight
3kg (UTP3313TFL-II); 4kg (UTP3315TFL-II)
Product size
105mm x 165mm x 249mm
Standard accessories
Power cord, output cables
