Description

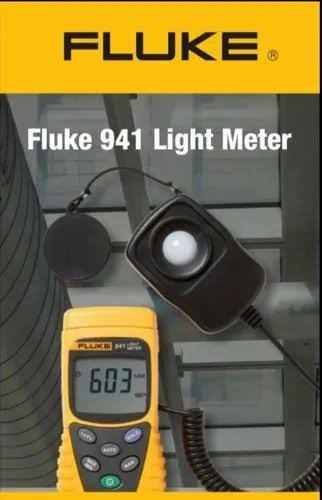

Specifications: Fluke 941 Light Meter
Measurement parameter
Range 20, 200, 2000, 20000, 200000 Lux
20, 200, 2000, 20000FC (footcandle)
Precision ±3% (at 2854°K – calibrated by the common incandescent lamp)
±6% other visible light sources
Cosine error
30°±2%
60 °±6 %
80 °±25 %
Cosine angle corrected according to the grade A general specifications of JIS C 1609:1993 and CNS 5119 A
Specifications
Sampling rate: 2.5 times/second for the digital display
Display: 3½ digit 1999-point LCD screen
Sensor: Silicon photoelectric diode and optical filter
Environment: For indoor use
Power supply: 9V NEDA 1604, IEC 6LR61
Battery life: 200 hours; in about 6 minutes after auto power-off
Dimension
(main unit) 130 × 63 × 38 mm
Dimension (sensor) 80 × 55 × 29 mm
