Description
Specifications

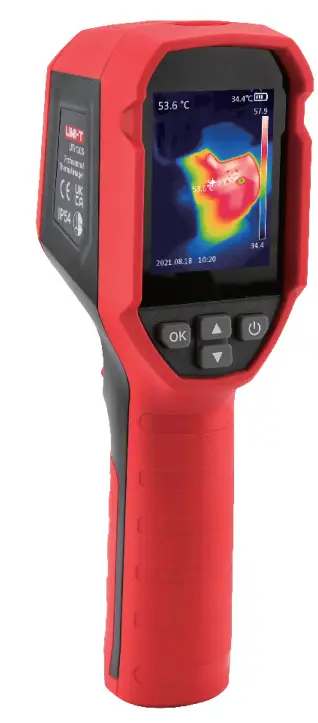

Sensor Uncooled infrared focal plane thermal imaging sensor
Pixel size 17 pm
Infrared spectrum bandwidth 8-14pm
Thermal imaging pixels 10800 (120’90)
Thermal imaging sensitivity <60mK
Field of view (FOV) 50°(H) x 38°(V)
Spatial resolution (IFOV) 7.6 mrad
Rate 25Hz
Minimum imaging distance 0.1m
Focus Focus-free
Temperature range -20°C – 400°C
Accuracy ±2°C or ±2%, whichever is greater (-10°C -400°C room temperature 25°C)
Measurement units °C/°F
Resolution 0.1°C
Emissivity 0.95 (default) 0.01 – 0.99
Temperature display Center point temperature, high/low-temperature tracking
Palettes lava, rainbow HC, black hot , white hot, iron, Rainbow
Display type 2.4″ TFT LCD
Display resolution 320 x 240
Buttons 4 buttons (power, up, down, OK) 1 trigger
Laser 4(Class 2)
LED Light 4
Temperature alarms LCD, LED, buzzer
Image storage Micro SD Card
Image format BMP
PC analysis software 4
USB communication Type-C USB
Battery Li-ion 3.7V/2600mAh 18650
Operating time Continuous operating time >9h
Charging time s2.5h
Charging voltage/current 5V 12A
Power on speed Os (wake up) / 5s (power on)
Auto power off 5min/10min/30min(default)/off
Operating temperature 0 – 50°C ( 32 -140°F )
Storage temperature -20 – 60°C ( -4 – 140°F )
Operating humidity < 85%RH ( Operating humidity )
IP rating IP54
Drop-proof 2m
Product size (LxWxH) 197 x 72 x 60 mm
Product weight 310g
Certificates CE, UKCA, RoHS
Accessories User manual, Type-C USB cable, 32GB Micro SD card
