Description

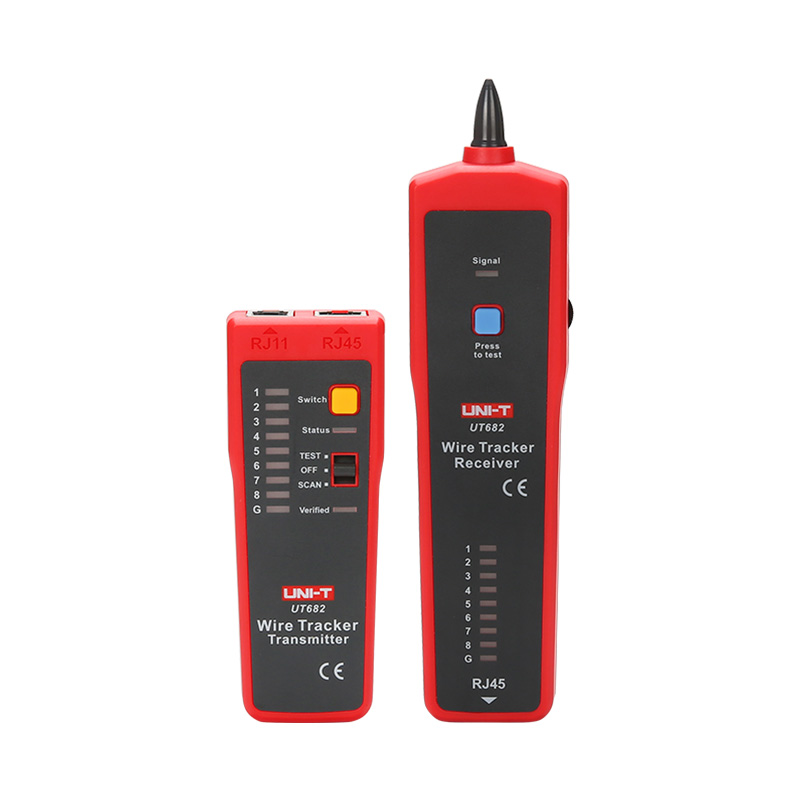

Specifications Range UT682
Wire tracking features Wire types LAN cable\telephone line\coaxial cable\electric wire
Indication light for signal strength √
Live switchboard wire tracing √
Switchboard wire tracing distance ≥100m
Telephone lines tracking distance ≥3000m
Unshielded cables tracking distance ≥320m
Shielded cables tracking distance ≥320m
Open and short circuit test √
Polarity indication for
telephone lines DCV function, range:
±(5V~52V) √
Telephone lines and LAN cables distinction Jacks distinction √
Broken wire tracking √
Transmitter output voltage ≥12V peak-peak
Transmitter low battery indication 6.6V±0.5V
Transmitter power supply 9V battery √
Max transmitter working current 25mA
Headphone jack for the receiver √
Receiver power supply 9V battery √
Max receiver standby current ~10mA √
Max receiver operating current <40mA (AC, RMS) √
Wire alignment Line sequence measurement 9 LEDs (LED1~LED8, LED_G) √
Line sequence measuring speed Fast and slow selectable √
LAN cable: shielded/unshielded indication √
Transmitter input
voltage protection 52V DC
Operating environment Operating temperature: 0~40℃; Storage temperature: -10~50℃
Operating humidity: 20~75%RH; Storage humidity: 10~90%RH; Altitude: ≤2000m
General Characteristics
Product color Red and grey
Product net weight Transmitter-125g, receiver-153g
Product size Transmitter-125mm x 48mm x 28mm, receiver-195mm x 48mm x 30mm
